  • Preset Counter

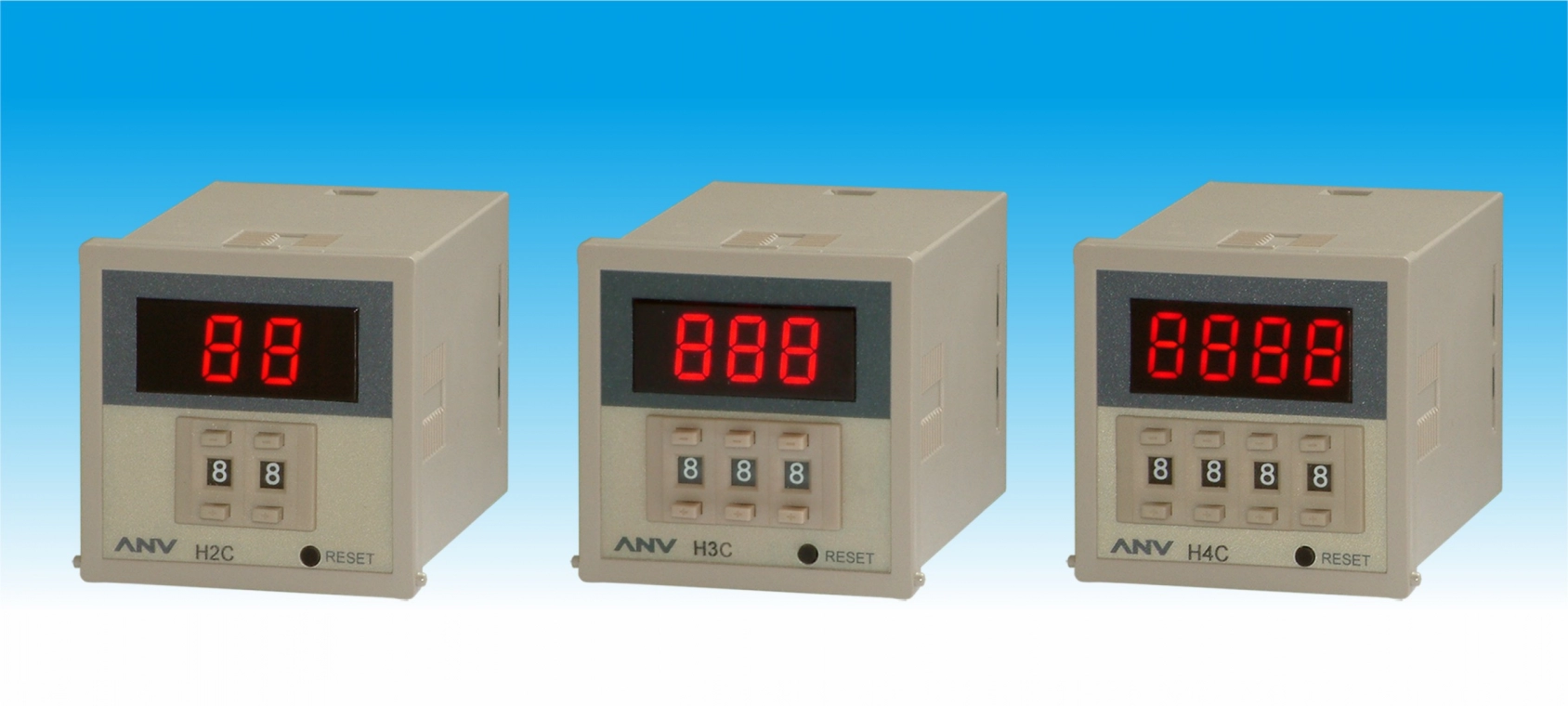

    H2C, H3C, H4C
    download icon
    H2C, H3C, H4C
    Characteristic
    • DIN Size W48 x H48mm
    • 2, 3, 4 digits display with 7 segment LED display
    • Offered in a wide range voltage of AC/DC 12~60V or AC 100~240V
    • Contact input, proximity or photoelectric switch compatible
    • Operating Mode UP count or Down count (Y) option by user
    • Counting speed: 30cps, 250cps or 1Kcps option by user
    • Power off reset or contact (1+3) reset
    • Memory function available (H5C-4M)
    • CE certified

  • Preset Counter

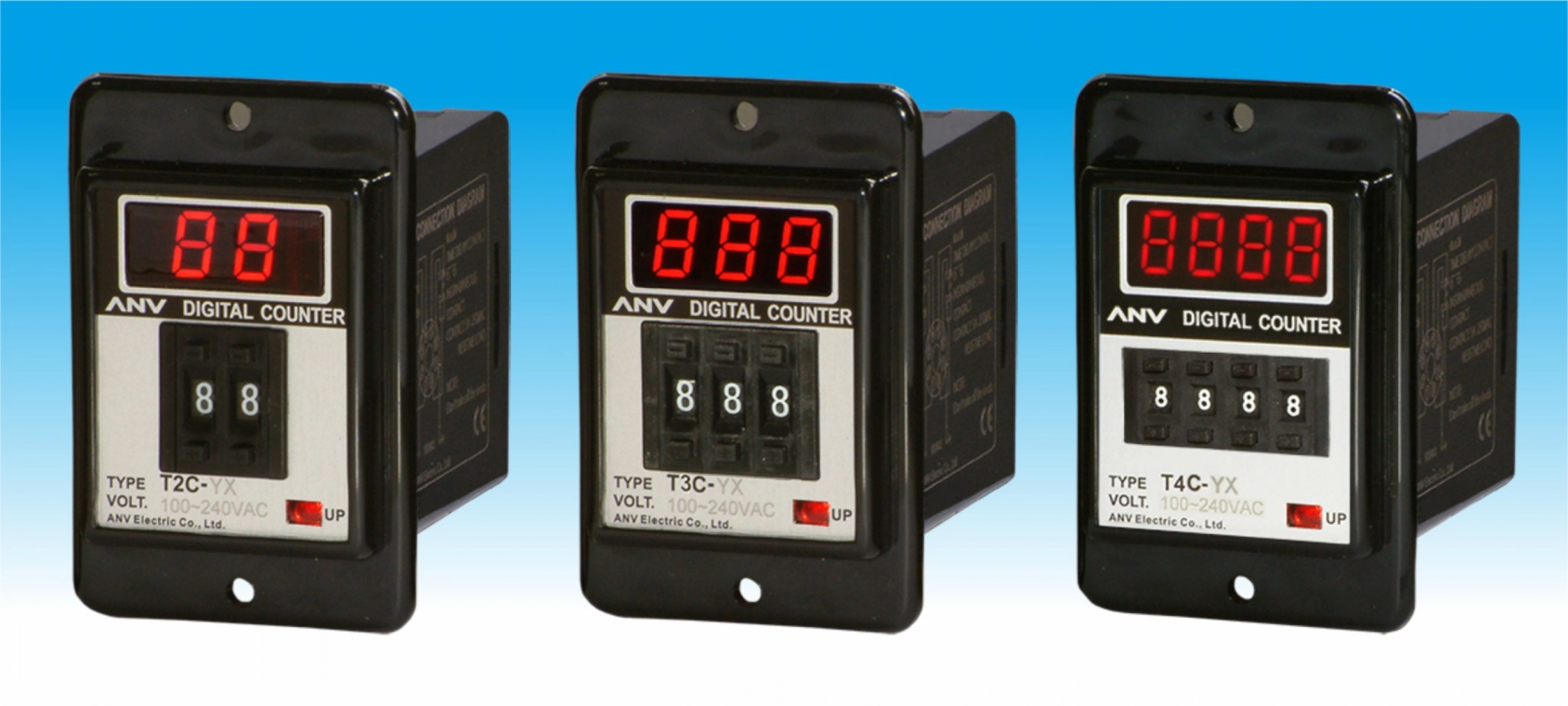

    T2C, T3C, T4C
    download icon
    T2C, T3C, T4C
    Characteristic
    • 2, 3, 4 digits display with 7 segment LED display
    • Offered in a wide range voltage of AC/DC 12~60V or AC 100~240V
    • Contact input, proximity or photoelectric switch compatible
    • Operating Mode UP count or Down count (Y) option by user
    • Counting speed: 30cps, 250cps or 1Kcps option by user
    • Power off reset or contact (1+3) reset
    • Memory function available (H5C-4M)
    • CE certified

  • Preset Counter

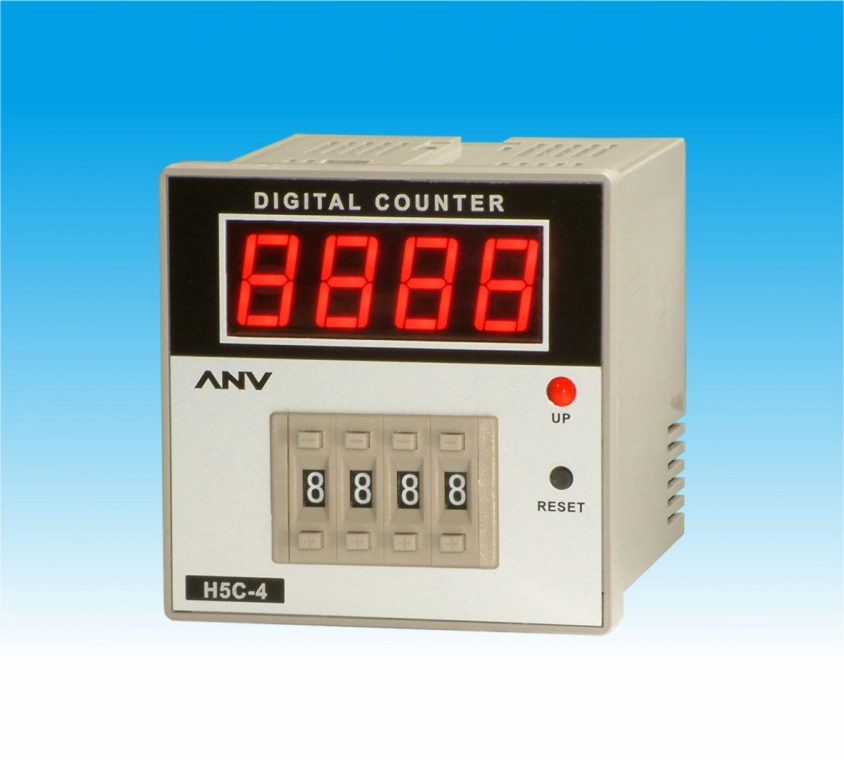

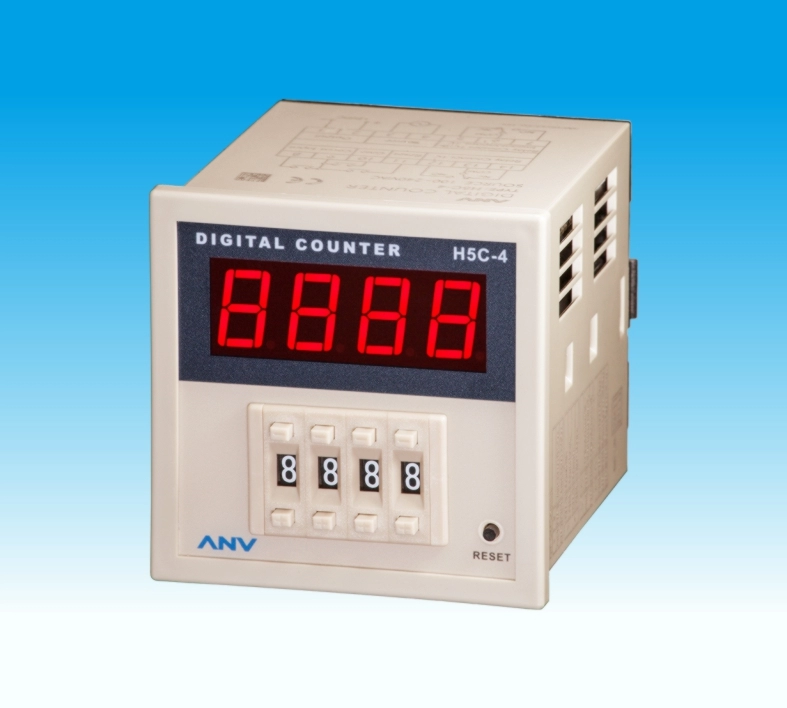

    H5C-4
    download icon
    H5C-4
    Characteristic
    • DIN Size W72 x H72mm
    • 4 digits display with 7 segment LED display (H4C-C, T4C-C, CM-4)
    • Offered in a wide range voltage of AC/DC 12~60V or AC 100~240V
    • Contact input, proximity or photoelectric switch compatible
    • Operating Mode UP count or Down count select by DIP switch
    • Counting speed: 30cps, 250cps or 1Kcps select by DIP switch
    • Power off reset or contact (9+11) reset
    • Memory function available (H5C-4M)
    • CE certified
